MINI 12PSB-A Slope Panel Diesel Injection Pump Test Bench

The MINI 12PSB-A features an ergonomic slope control panel for easier data reading. 8-cylinder testing with YH-770 simulator and advanced distributor pump adjustment capabilities.

Haz clic en el botón de WhatsApp para chatear o déjanos un mensaje, y nos pondremos en contacto contigo en un plazo de 12 horas.

WhatsApp: +86-13375386258

Detalles

The MINI 12PSB-A elevates the testing experience with its ergonomic Slope Control Panel design. Unlike traditional flat-faced machines, the "A-Series" features an angled dashboard that aligns perfectly with the operator’s line of sight. This unit comes fully equipped with the YH-770 Simulator and a specialized VE pump return oil flow meter. It is designed for technicians who require both comfort and high-end functionality when adjusting mechanical governors and testing distributor pumps.

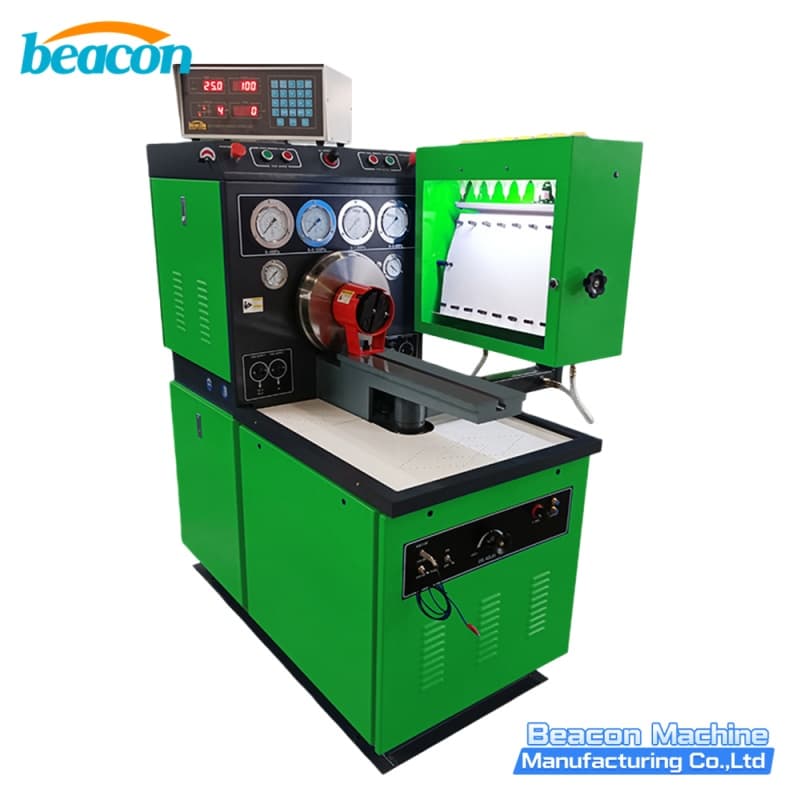

pump calibration

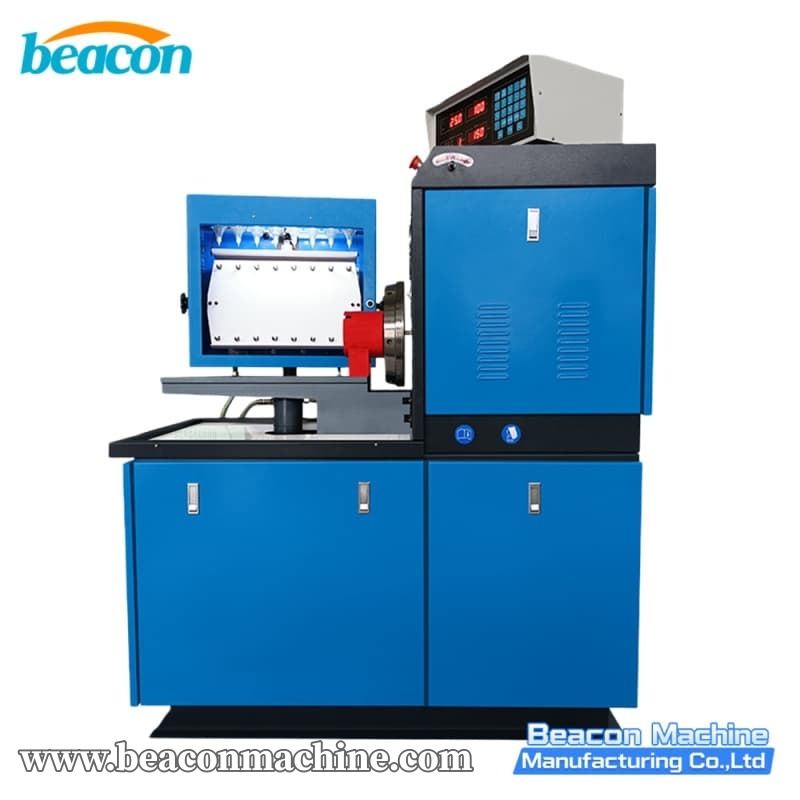

diesel injection pump test bench

MINI 12PSB-A Slope Panel Diesel Injection Pump Test Bench Ventaja

Ergonomic Slope Design: The angled control panel allows technicians to read the digital tachometer, pressure gauges, and flow meters without bending over, significantly reducing fatigue during long calibration jobs.
Enhanced Visibility: The layout ensures that the glass measuring cylinders (45ml/150ml) and the phasing degree dial are easily visible from the operating position.
Advanced Simulation: Integrated YH-770 Simulator provides precise signal processing for accurate pump behavior analysis.
Comprehensive VE Testing: Specifically optimized for distributor pumps, featuring dedicated tests for internal pressure (0-1.6 Mpa) and electromagnetic valve performance.

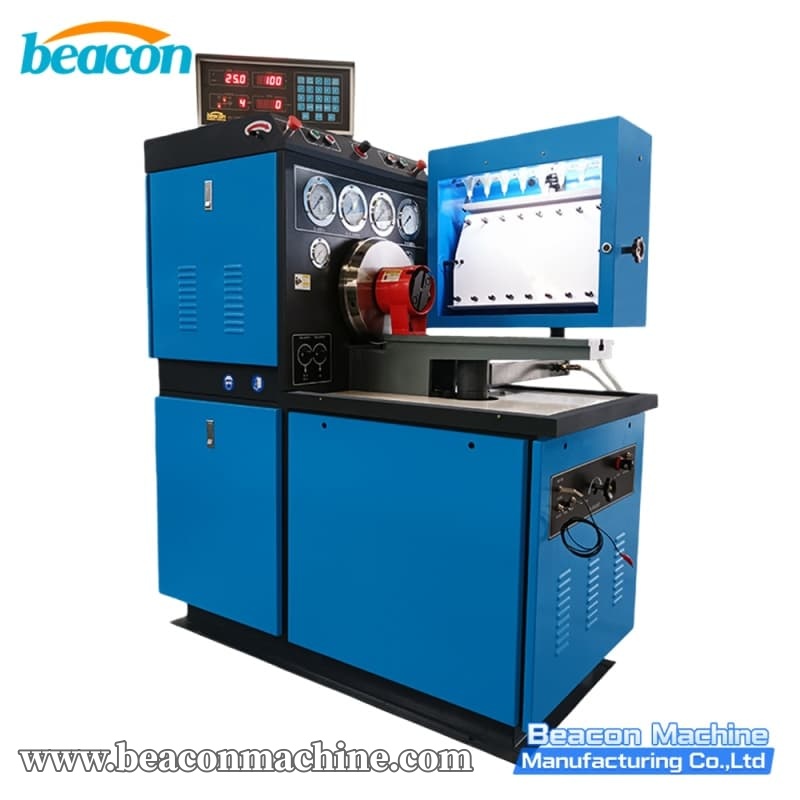

12psb test bench

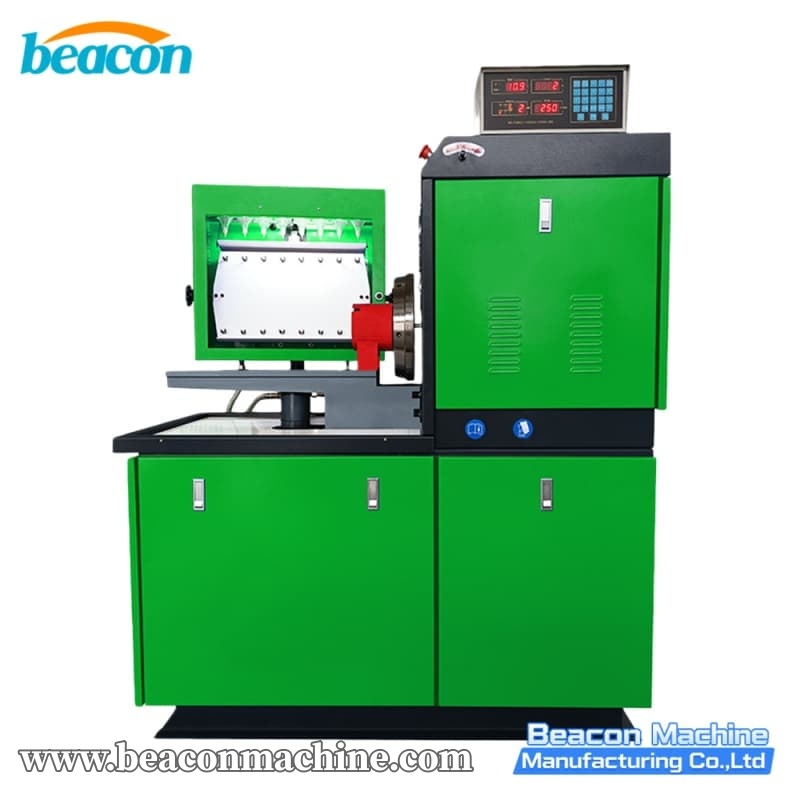

mechanical pump tester

parámetro

Technical Parameter	Specification
Compatible Models	MINI 12PSB, 12PSB-A, 12PSB-S
Number of Cylinders	8 Cylinders
Motor Power	7.5KW or 11KW (Selectable)
RPM Speed Range	0 - 4000 r/min
RPM Accuracy	± 1 r/min
Power Input	380V 3-Phase / 220V 3-Phase / 220V 1-Phase
Frequency Drive	A.C. Inverter Control
Fuel Tank Capacity	40 Liters
Oil Pressure (High)	0 - 4 Mpa
Oil Pressure (Low)	0 - 0.4 Mpa
Internal Pressure	0 - 1.6 Mpa
DC Supply	12V / 24V
Measuring Cylinders	45ml & 150ml (Glass)
Stroke Counter	50 - 9999 Strokes
Temperature Control	40℃ ± 2℃ (Range 0-99.9℃)
Cooling Method	Forced Cooling (Refrigerant R22)
Dimensions	Standard Compact Size
Available Colors	Green, Red, Blue, Yellow, Grey, Black

Application Scenarios

Vehicle Repair Shops: Calibration of pumps for older trucks and diesel cars.
Agricultural Maintenance: Testing pumps for tractors and harvesters.
Marine/Generator Service: Maintaining mechanical pumps for small vessels and gensets.
Vocational Training: Educational use for teaching diesel injection principles.

FAQ

Q: Can I change the color of the machine?
A: Yes, we offer Green, Red, Black, Blue, Grey, and Yellow. Please specify your preference when ordering.

Q: What is the difference between 7.5KW and 11KW?
A: 7.5KW is sufficient for most standard automotive pumps. 11KW provides higher torque, recommended for larger truck pumps or heavy-duty use.

Q: Does this machine test Common Rail pumps?
A: No, the MINI 12PSB series is for Mechanical Pumps (Inline, VE, Distributor). For Common Rail, please check our CRS series.
