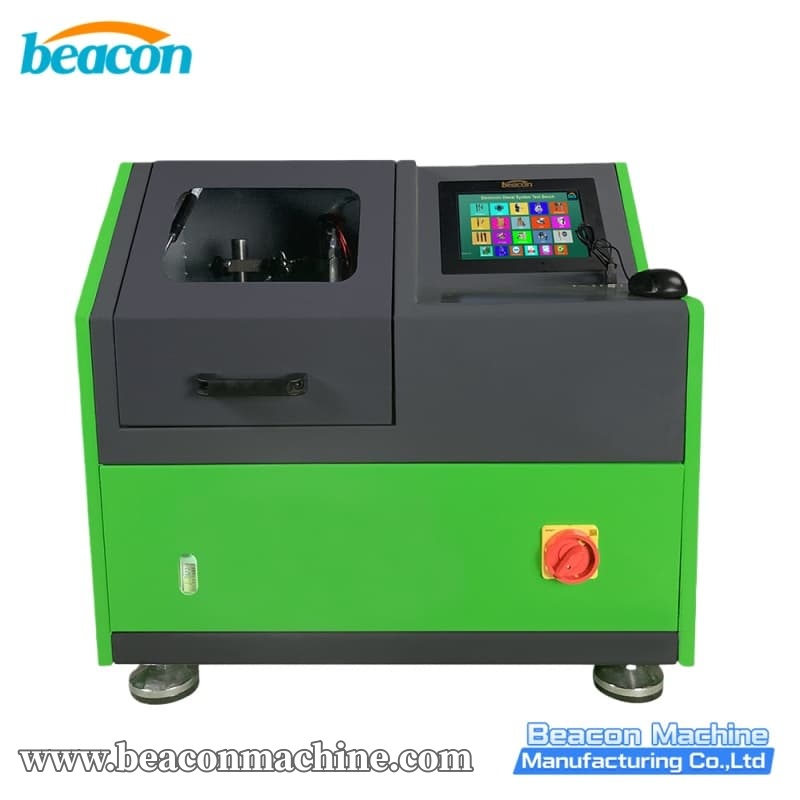

EPS205 High Pressure Common Rail Injector Test Bench with Coding

Compact EPS205 test bench for Common Rail and Piezo injectors. Supports coding for Bosch, Denso, Siemens, Delphi. 2.0KW Servo Motor included.

Haz clic en el botón de WhatsApp para chatear o déjanos un mensaje, y nos pondremos en contacto contigo en un plazo de 12 horas.

WhatsApp: +86-13375386258

Detalles

The EPS205 is a fully computerized diagnostic bench designed for precision. Despite its compact size, it packs powerful features including the ability to test Piezo injectors and generate IMA/ISA codes.

Motor: 2.0KW Servo Motor.
Functionality: Full computer control with print capability.
Testing: Common Rail & Piezo injectors.
Coding: Supports Bosch, Denso, Siemens, and Delphi coding.
Optional: BIP (Begin of Injection Period) function.

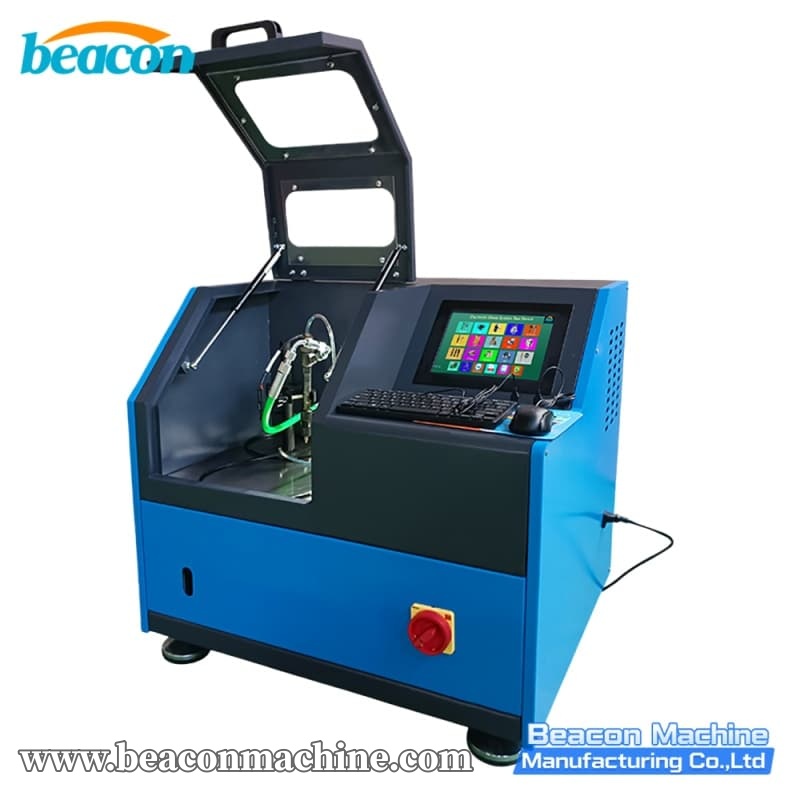

injector coding

EPS205

EPS205 High Pressure Common Rail Injector Test Bench with Coding Ventaja

Smart Coding: Generates QR codes for major injector brands, increasing repair value.
Space Saving: One of the most compact designs on the market (800x750x800mm).
Piezo Ready: Capable of testing modern Piezo technology injectors.
Servo Precision: 2.0KW Servo motor ensures consistent pressure and speed.

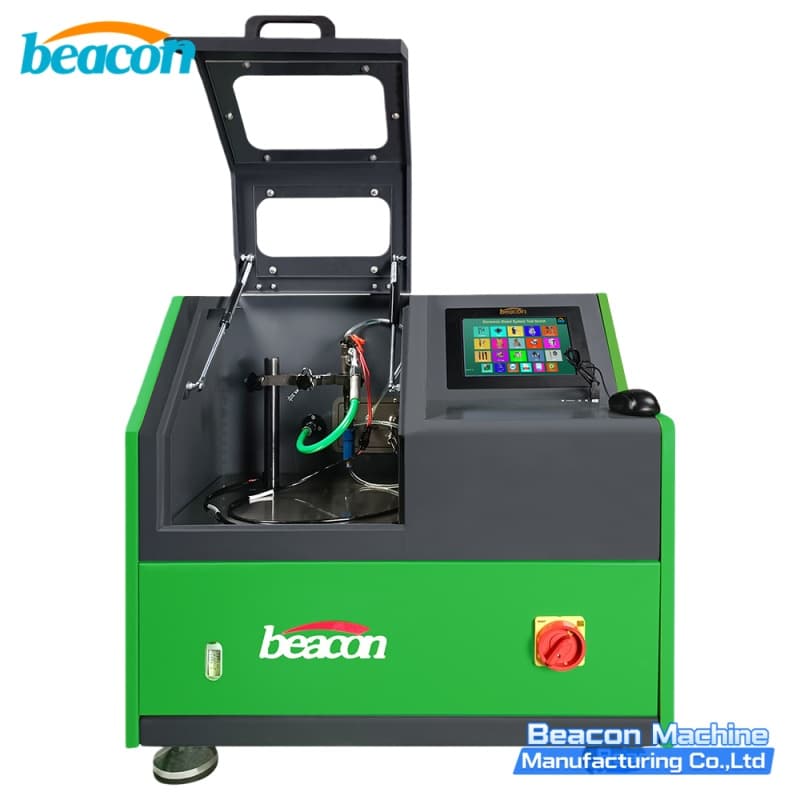

piezo tester

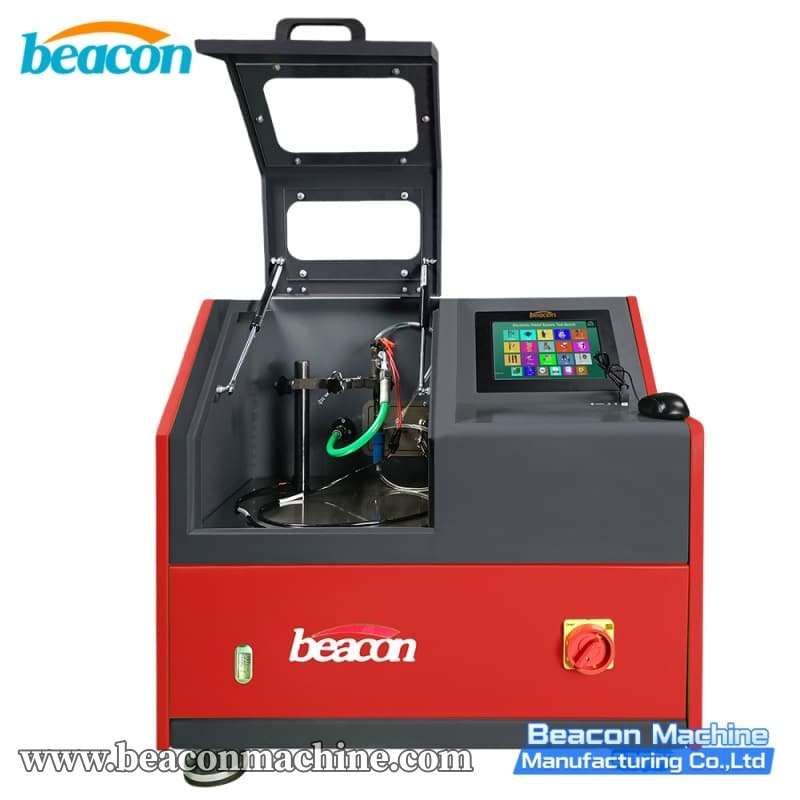

Bosch coding

parámetro

Model	EPS205
Power	2.0KW Servo Motor
Voltage	220V Single Phase
Injectors Supported	Common Rail, Piezo
Coding Brands	Bosch, Denso, Siemens, Delphi
Optional Feature	BIP Function
Color Options	Green, Red, Black, Blue, Grey, Yellow
Net Weight	135 kg
Dimensions (Actual)	800 x 750 x 800 mm
Packing Dimensions	970 x 870 x 910 mm

Application Scenario:
Designed for professional diesel service centers with limited floor space. Perfect for technicians who need high-precision testing and coding capabilities (generating QR codes) for modern common rail and piezo injectors.
FAQ:

A: The EPS205 is a computerized system with Coding capabilities and digital flow sensors, whereas the EPS100S is a manual tester using glass tubes without a PC. EPS205 is for professional calibration; EPS100S is for basic testing.
Q: What is the difference between EPS205 and EPS100S?

Q: What is the difference between EPS205 and CRS5000?

A: Motor & Size: EPS205 is a compact unit (135kg) equipped with a precise 2.0KW Servo Motor. CRS5000 is a larger, heavy-duty unit (280kg) equipped with a powerful 4.0KW Standard Motor. Both perform the same testing and coding functions, but CRS5000 is built for heavier continuous workloads.
